GAGE PRODUCTS


 900 SERIES

GROOVE DIAMETER GAGES
For small diameter grooves and recesses from 5/32" to 1 1/8". Standard inreach 1" to 4" depending on model.

Model 903-2
900 SERIES
Models 901-2, 902-2, 902-2, complete set 905-2.   .154 to .615 diameter range with 3 measuring tips.  Inreach from 1" to 1 7/8" depending on tip.

Model 952-2
Model 952-2 with Analog/Digital Indicator
950 SERIES
bullet

Models 951-2, 952-2, 953-2, complete set 957-2.  .495 to 1.128 diameter range with 3 measuring tips.  Inreach from 2 1/2" to 4" depending on tip.
bullet

 Models 951-2, 9522, 953-2, complete set 957-2.   .495 to 1.128 diameter range with 3 measuring tips.  Inreach from 2 1/2" to 4" depending on tip.
bullet

Supplied with .0005" indicator. .0001" and metric dial indicators available.
bullet

Measuring tips are hardened and hard chrome plated for long wear.
bullet

Gages may be set with micrometers, gage blocks, ring gages etc. Three point contact gages set with cylindrical master only.
bullet

Storage cases available for all models. Supplied with 905-2 & 957-2 sets.
bullet

950 series gage may be used with any AGD Group II style (2 1/4" dia) electronic digital indicator with SPC output.



900 SERIES

900 series gages are supplied complete with gage body, measuring tip and .0005" dial indicator. Models 905-2 and 957-2 are complete sets with gage body, dial indicator, 3 measuring tips and protective storage case.

These gages are available in 2 sizes. Models 901-2, 902-2 & 903-2 are the smaller versions offering a .154 to .615 diameter range with the 3 available tips. This size uses the AGD miniature dial indicator. The larger 952-2, 952-2 & 953-2 models use the AGD Group 1 dial indicator and offer a .495 - 1.128 diameter range with all three tips.

Please use the following chart to make your selection.


GROOVE GAGES

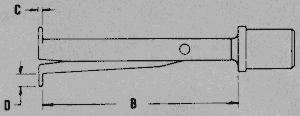

Specifications for 900 Series Measuring Tips
900 SERIES GROOVE GAGES
Gage Model No. Bore Dia. Range Length of Meas. Tip Width of Meas. Tip Depth of Meas. Tip  Tip No.
901-2  .154-.320 1.000 .040 .060 101-2
902-2 .245-.440 1 7/8 .050 .065 102-2
903-2 .372-.615 1 7/8 .060 .100 103-2
905-2 .154-.615

Includes 101-2, 102-2, 103-2 Meas., Tips and Storage Case.
Complete Set
Storage Case - No. 900-1

950 SERIES GROOVE GAGES
Gage Model No. Bore Dia. Range Length of Meas. Tip Width of Meas. Tip Depth of Meas. Tip  Tip No.
951-2  .495-.740 2 1/2 .060 .160 151-2
952-2 .620-.870 3 3/8 .070 .180 152-2
953-2 .745-1.128 4.000 .125 .240 153-2
957-2 .495-1.128

Includes 151-2, 152-2, 153-2 Meas., Tips and Storage Case.
Complete Set
Storage Case - No. 950-1



Please Note:  Three point contact measuring tips are available at no additional cost.  Substitute -3 for -2 following gage or tip model no.  Example:  952-2 is 2 point & 952-3 is 3 point contact.  Three point contact requires cylindrical setting master.
