 1550   SERIES

 ADJUSTABLE DIAMETER & GROOVE GAGE
FRICTIONLESS BALL BUSHING MOVEMENT

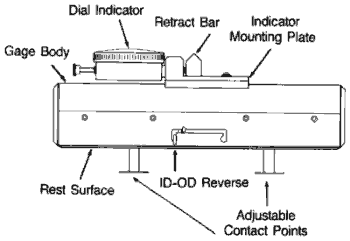

Model 1550 with Digital Indicator

bullet

High accuracy gage checks inside & outside diameters, groove diameters & related dimensions.

bullet

Gage rests on face of part for fast & dependable 2 point measurement directly across diameter.

bullet

Checks inside & outside diameters.

bullet

Large 1" to 7 3/4" diameter range.

bullet

Adjustable gaging depth from 1/16" to 3 ". Deeper depth range available.

bullet

Linear ball bushing movement for precise repeatability. 2 ground shafts with 8 precision ball bushings.

bullet

Hardened steel rest surface

bullet

Full 1" travel (retraction) for checking deep grooves.

bullet

Complete range of standard contact points available.

bullet

Special 2 point & 3 point contacts made for custom applications.

bullet

Fast & positive ID-OD reverse. No loose parts.

bullet

Use with mechanical or electronic indicator.

bullet

Easily set with gage blocks, ring gage or qualified part.



GAGE SPECIFICATIONS


Model 1550 Gage supplied with AGD Group 2 .0005" dial Indicator with 1/2" travel & rev. counter. .0001" & metric indicators available. Gage supplied with 1 set No. 1575-1 contact points. May be ordered with any style contacts.

Gage Length 9 5/16". Approximate weight 3#.

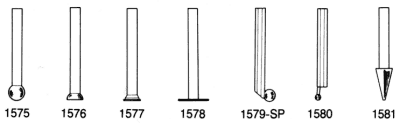

CONTACT POINTS
Select contact style & depth range required.
Supplied in sets of 2 pcs. Stem diameter 5/16".

1/16"-1" Adj.
Depth Range
1"-2" Adj.
Depth Range
2"-3" Adj.
Depth Range
Description
1575-1 1575-2  1575-3 1/2" Dia. Carbide Ball Contact
1576-1 1576-2 1576-3 1/2" Dia. Carbide Half Ball Contact
1577-1 1577-2 1577-3 29/64" Dia. Hardened Steel Contact
1578-1 1578-2 1578-3 1" Dia x .050" thick hardened & hard chrome plated disc contact 0.025"R
1579 SP-1 1579 SP-2 1579 SP-3 Special Carbide Ball Contact
Specify Ball Diameter Required
1680-1 1580-2 1580-3 Offset 3/16" diameter Carbide Ball Contact
1581     Taper contacts for center distance of holes from 1/8" to 1/2".
